Yanmar – Spare Parts for Yanmar Marine Diesel

Yanmar Marine Diesel is a Japanese engine manufacturer that supplies engines for small sailboats, speedboats, yachts, and larger commercial vessels. Their engines are known for reliability and expensive spare parts. This situation is solved by PoseidonMarine’s quality aftermarket parts that we offer for Yanmar marine diesel engines. Technically, our range covers engines from 70mm up to around 120mm piston diameter.

PoseidonMarine offers parts from small and portable engines, such as: SB12, YSB12, YSE8, YSM8, 1GM, 2GM, 3GM, and YM-series. These engines are very popular in the range of small and medium sailboats, since they are very economical to operate, easy to maintain, and free of serious problems. This is the reason we offer parts for engines that are 50 years old or even older. After all, if something works, there is no need to change it, right?

We also offer parts of medium-sized engines, like the 3JH, 4JH, 3JHE, 4JHE, 4LH, 4LHA, and HM-series. These are usually installed in catamarans, since they take little space, have decent power, and again very reliable and easy to maintain.

The largest engines of our range are the 6LP, 6LY, 6LY2, and some BY-series. These engines are six-cylinder turbocharged and have a common application in speedboats, small and medium-sized yachts, and larger catamarans. Their maintenance is more demanding, since they pack quite a punch.

PoseidonMarine’s range for Yanmar marine diesel can be classified into the following sub-categories:

• Engine parts, like pistons, bearings, valves, and gasket sets.
• Cooling system components, from impellers to heat exchanger gasket kits, thermostats, seawater pumps and repair kits for them, our parts for your Yanmar cooling system are available to keep your engine within a normal temperature range.
• Fuel pumps.
• Exhaust elbows, turbochargers, and gaskets for them.
• Filters: Oil filters, air filters, and fuel filters.
• Timing belts, alternator belts, water pump belts, and electrical parts.
• Anodes for the engine and the cooling system.
• Engine maintenance kits.

In particular, PoseidonMarine offers a wide range of cooling system components. That category is regularly under expansion. Some of these components are manufactured by us, while others are made by other European companies, like the Swedish Crom Marine and the Catalan Recambios Marinos. Here are our most popular parts for the cooling system of your Yanmar engine:

• PoseidonMarine® Water pump repair kit Yanmar 1GM 1GM10 pump 128170-42200
• PoseidonMarine® Water pump repair kit Yanmar -YEU 2YM 3YM X03431748 X03431760 128990-42200
• PoseidonMarine® Water pump repair kit Yanmar 6LP 119773-42600 pump 119773-42500
• PoseidonMarine® Water pump repair kit Yanmar 3JH 4JH 129670-42513 129670-42560
• PoseidonMarine® Water pump repair kit Yanmar 2GM 3GM 104211-42070 128270-42000
• Recmar® Seal kit Yanmar 3GM radiator 121450-13251 128297-44030 128695-44070
• PoseidonMarine® Water pump repair kit Yanmar 2GMF 3GMF 124223-42092 121575-42000
• Recmar® Anode thermostat gasket Yanmar 1GM 1GM10 2GM 2GM20 3GM 104211-49160
• PoseidonMarine® Water pump repair kit Yanmar 4LHA 10-24535 119175-42500 127610-42200
• PoseidonMarine® Water pump shaft kit Yanmar 1GM 1GM10 pump 128170-42200

Another successful category with spare parts for Yanmar marine diesel is the one with parts for the exhaust system. Our partner, Recmar, has introduced a whole range of new, redesigned, stainless steel exhaust elbows. Taking into account the offered turbochargers for Yanmar, our parts offer an A-Z solution for your exhaust system. Some exhaust elbows offered in our store are:

• Recmar® Stainless steel Exhaust Elbow Yanmar 2YM15 3YM20 3YM30 128890-13530
• Recmar® Stainless steel Exhaust Elbow Yanmar 4LHA 6LP 119773-13501
• Recmar® Stainless steel Exhaust Elbow Yanmar 4JH 129792-13552 129671-13551
• Recmar® Stainless steel Exhaust Elbow Yanmar 3JH2 4JH2 129470-13550
• Recmar® Stainless steel Exhaust Elbow Yanmar 4JH 3JH 129470-13561 129670-13561
• Recmar® Stainless steel Exhaust Elbow Yanmar 3GM30 3HM35 128370-13550
• Recmar® Stainless steel Exhaust Elbow Yanmar 4LH-DTZ 4LH-DTE 119173-13501
• Recmar® Stainless steel Exhaust Elbow Yanmar 4JH4-TE 129671-13552
• Recmar® Stainless steel Exhaust Elbow Yanmar 4LH-STE 119181-13500
• Recmar® Exhaust Elbow for Yanmar 2QM 2QM20 724770-13200 124770-13690

Last but not least, we offer many internal engine components and even complete overhaul sets. The most-sold engine repair kits are those of the 6LP series: “PoseidonMarine® Overhaul kit Yanmar 6LP 12-valve 119770-00250 119770-00490 119770-00480” and “PoseidonMarine® Overhaul kit Yanmar 6LP 24-valve 119770-00250 119771-00211 119771-00220”. See here more popular internal engine components we offer:

• PoseidonMarine® Intake valve Yanmar 6LP-STP 6LPA-STE 119771-00211 24V engines
• Crom® valve stem seal for Yanmar 6LP 24-valve 119771-90210 119775-11340
• Recmar® Exhaust Valve stem seal Yanmar 3JH 4JH 121400-11340
• Recmar® Connecting Rod Bearing Yanmar JH-series 129150-23601
• Recmar® Connecting Rod Bearing Yanmar 6LY2 series 719595-23600
• Recmar® Exhaust Valve Yanmar  4LH 4LHA 6LY2 6LYA 6LYM 119593-11110
• Recmar® Intake Valve Yanmar 4JH-DTE, -HTE 4JH2-DTE, -HTE, -TE, -UTE 129100-11100
• Recmar® Rod bearing (All Sizes) Yanmar 6LP 6LPA MARK 2-MARK 6
• Recmar® Main bearing STD Yanmar 4LHA 4LH 719000-02800
• Recmar® Rod bearing STD Yanmar 4LH 4LHA 719174-23601

PoseidonMarine supplies quality aftermarket spare parts for Yanmar Marine Diesel, to Europe, the USA, South America, and Oceania. We maintain a large inventory; thus, we are able to fulfil your demands fast and efficiently.



Recmar® seawater Pump Yanmar 6LP 119773-42502

• Accessibility: The seawater pump is located on the front side of the engine, and it is usually hard to access. This is the reason many Yanmar 6LP owners prefer to remove the whole pump in order to change an impeller. Sometimes, it is easier to have one or even two spare pumps instead of parts for them.
• Water Leaks: The water pump 119773-42502 may start leaking around 500 hours of use. Initially, it will be a small dripping from the oil/water seals, which will intensify.
• Signs my water pump needs repair: One of the most obvious signs your 119773-42502 needs service is the water pump dripping. This is usually an oil seal (#X0508511) and a water pump O-ring (119773-42570) change. If the pump makes a wobbly sound during its function, it may be due for a new bearing kit. If you notice deep marks on the shaft at the oil seal area, you will need a new shaft. Even if you put new oil seals, the small groove will damage them faster, leading to a new leak. After all, even the shaft is a water pump consumable, with a lifecycle of 1500-3000 hours. We offer an A-Z solution, covering all essential and supplementary parts to renovate your old Yanmar part, and make it like new: “PoseidonMarine® Water pump repair kit Yanmar 6LP 119773-42600 pump 119773-42500”.

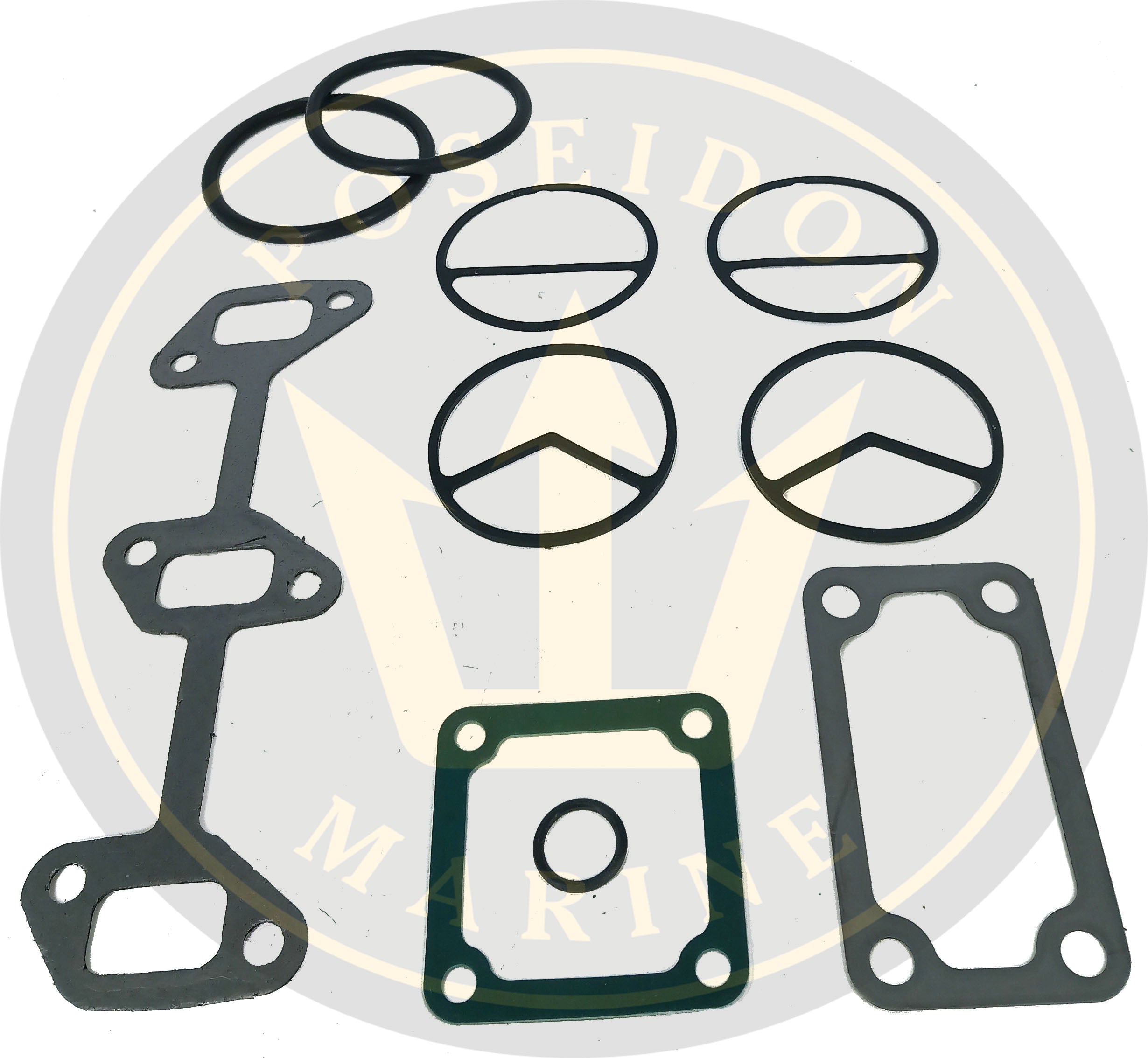

Recmar® Seal kit Yanmar 3GM radiator 121450-13251 128297-44030 128695-44070

• Disassembly difficulty: During the process of disassembly, you may find challenges, especially if the radiator has not been maintained for a long time. Additionally, the aluminum housing is prone to corrosion and relatively easy to damage. The core of the cooler can be extracted by opening the cover of the cooler. It is preferred, though, to dismantle the whole manifold assembly from the engine.
• Core cleaning: Having torn your radiator apart brings you the chance to clean its core. An acidic solution, then rinsing with water, is the ideal solution to descale your heat exchanger.
• Seal Placement: Make sure that all the mating surfaces are clean and free of any contaminants, in order to achieve a proper sealant. The gasket set “Recmar® Seal kit Yanmar 3GM radiator 121450-13251 128297-44030 128695-44070” contains all necessary seals to reinstall the radiator on the manifold, and then the whole manifold assembly on the engine.

Recmar® Stainless steel Exhaust Elbow Yanmar 4LHA 6LP 119773-13501

• Accessibility: The exhaust elbow is mounted on the turbocharger. The engine compartment is usually tight, so its removal may be difficult.
• Corrosion and Seizing: All cast iron elbows suffer from corrosion and seizing, especially if the elbow is not dismounted and cleaned regularly. Additionally, a neglected elbow will have accumulated carbon deposits, which will accelerate the corrosion and reduce the flow of the exhaust gases, leading to performance issues and direct corrosion to the turbocharger.
• Stainless steel solution: A stainless steel elbow, like this “Recmar® Stainless steel Exhaust Elbow Yanmar 4LHA 6LP 119773-13501” does not corrode, therefore does not accumulate carbon. PoseidonMarine offers stainless steel elbows for many different Yanmar marine diesel engines, all made of 316L stainless steel.

Recmar® Zinc anode adapter plate saildrive 196440-02690

• Accessibility: The saildrive anodes are located around the propeller housing or on the propeller itself; it depends on the exact Yanmar saildrive model.
• Corrosion protection: Generally, magnesium anodes are used on freshwater applications, zinc anodes for seawater, while the aluminum anodes can be used more versatilely between the sea and brackish basins. Zinc is preferred when the boat is stationary (moored) for prolonged periods, since that metal is more resistant to the process of pacification, the formation of a slimy coating on the anode that makes it inactive. The right choice of anodes will strongly affect the longevity of your Yanmar’s drive parts.
• Model variations: The saildrive range includes many different anodes that vary on the exact model of your drive. There is split ring collar like the “Recmar® Anode Zinc split Yanmar SD20-30-40-50-60 196440-02660” or solid “Recmar® Anode  Aluminum split Yanmar SD20 30 40 50 60 196450-02500”

Recmar® Propeller shaft seal kit Yanmar saildrive

• Accessibility: The saildrive propeller seals are located behind the anode and the bearing carrier. Consequently, their replacement can happen only when the saildrive is outside of the water.
• Signs the propeller seals need repair: Any leak of oil from the propeller shaft is reason to perform ASAP a seal replacement. A leaking seal, at the beginning stage, will let water enter the lubricant of your saildrive. All marine-grade lubricants have water-dispersing properties and will absorb a significant amount of water or moisture before they become saturated. At this stage, the oil may have a milky texture and color, or your propeller housing may have some water at the bottom of the propeller housing. If that water is not removed fast, the propeller shaft bearings will get damaged, and may produce wobbling sounds. Eventually, the gears will get corroded.
• Model variations: The saildrive range includes many different models, so PoseidonMarine offers propeller shaft sealing kits for the models of SD20, SD25, SD40, and SD50.
  Recmar® Propeller shaft seal kit Yanmar saildrive SD20 196313-02591 24321-000950
  Recmar® Propeller shaft seal kit Yanmar saildrive SD25 196313-02591 196420-12240
  Recmar® Propeller shaft seal kit Yanmar saildrive SD40 SD50 196440-02871
